UNIVERSAL MANUAL OVERWRAPPER MACHINES FOR EVERY KIND OF BOX OR OTHER TYPE OF PACKAGING EASY WITH CONTINUOUS CELLOPHANE ROLL

incellofanatrice

WELDING POINT OPTION

CUTTING OPTION

sb

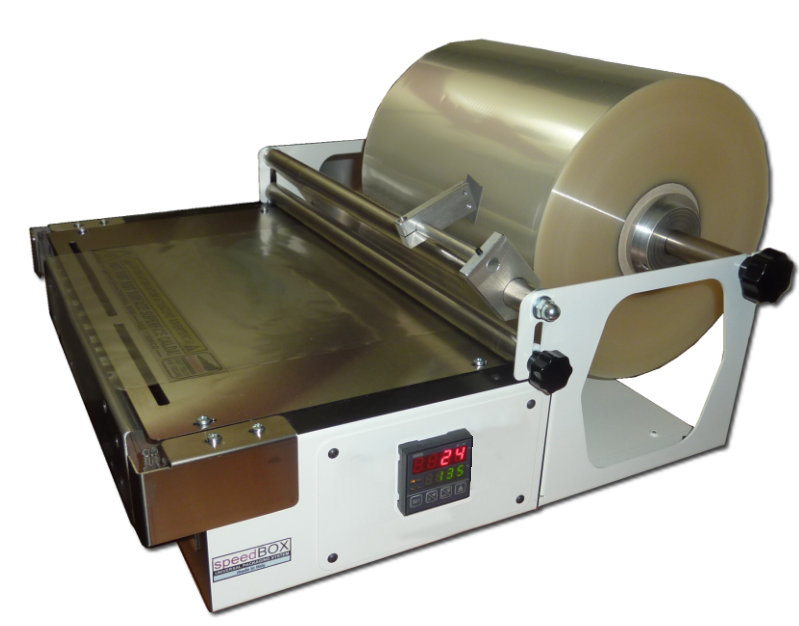

EUROPALINK is proud to present SpeedBox a 100% made in Italy solution, high quality unique on the market designed for the box cellophane overwrapping suited for every kind of packaging providing cellophane bending and welding like "pack of cigarettes." Speedbox is perfect to wrap cosmetics, perfumes, medical articles, games, food boxes, Jewell box cd, dvd box, Blu Ray box packages and much more in your mind. A perfect solution for all those into small medium runs when not required a very expensive industrial machine, and where is needed the typical chellophan solders like the gift packs.

The SpeedBox packaging solutions are the cheaper and that you can find, you can quickly learn and pack fastly any kind of box with identical results like the expensive industrial machines. Do not be scared by the manual use, with a little practice, thanks to the continuous roll you can cut the film and make precision welds of any size up to 50cm, fast without any waste or scrap. Also, if your needs are constantly different, we can provide you suited bobine or you can use the continuous cutting module to adjust the Film width, good for your box. SpeedBox, SpeedBOXwide machines are completely manual, but acquiring a discreet operation you can quickly pack up to 150 boxes per hour depending on the size of your box. Now you can make your packaging at home with SpeedBox, or restore the old boxes reducing costs les than 2 cents!

SpeedBox has a heavy duty construction, has an electronic display for the temperature adjustment and control in addition to an innovative system of adjustable clutch to set the film tension good to wrap tightly your packages. The double rollers system allows cellophan dragging without waves or returns extremely annoying in the works. SpeedBox can use same industrials rolls is equiped with strong alluminium special part to allow this. Our Wrapper is ideal tool for each task, you can pack from scratch or restore the packaging of all open boxes with ease.

WRAPPING JEWELL CASE and DVD BOX: SpeedBox is perfect for CD DVD Bluray BOX duplicators needing packaging JEWELL CASE (Audio CD) 10mm standard or 14mm standard DVD BOX or otherwise, you just need the right size rolls Europalink always have ready for delivery. With tailored rolls you will be able to wrap both Jewell case and and DVD-BOX with a single machine, simply replacing the bobine.

WE SHIP WORLDWIDE

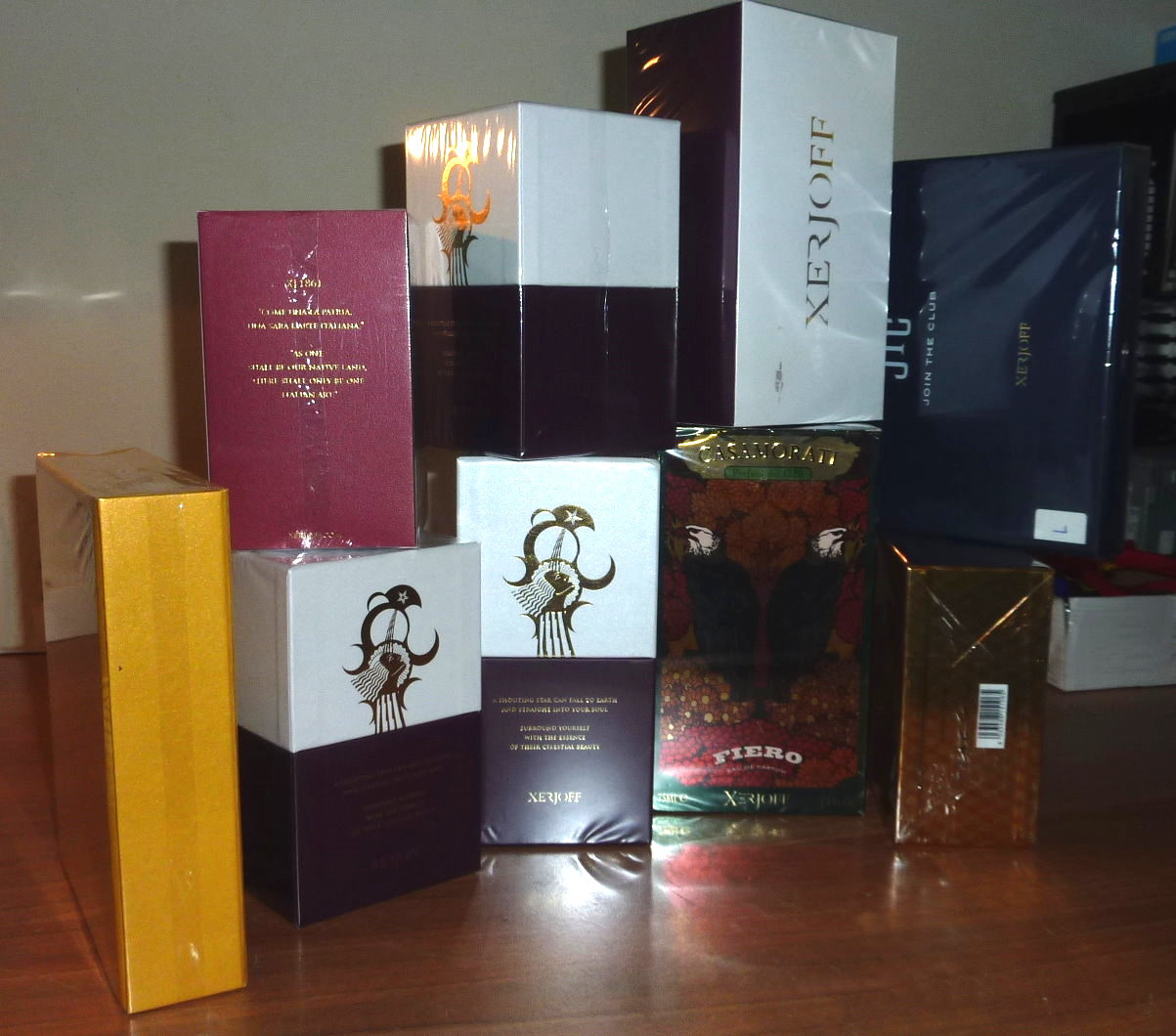

GOOD FOR COSMETICS PERFUMES PACKAGING DRUGS TOYS HOMEMADE FOOD AND MUCH MORE
boxboxbox

boxjewboxbox

SUITED FOR JEWELL CASE DVD BOW USING TAILORED CELLOPHANE ROLLS



sb

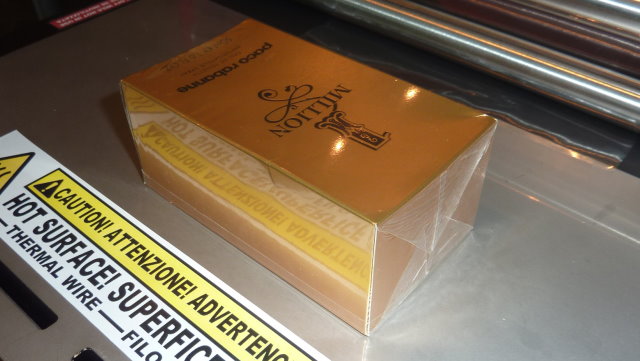

SIMPLE BOX WRAPPING EXAMPLE:



MORE VIDEOS IN OUR YOUTUBE CHANNEL: EUROPALINKNET

OTHER BOX OVERWRAPPING EXAMPLE:

info

MORE VIDEOS IN OUR YOUTUBE CHANNEL: EUROPALINKNET

POINT WELDING EXAMPLE:

info



MORE VIDEOS IN OUR YOUTUBE CHANNEL: EUROPALINKNET



sb

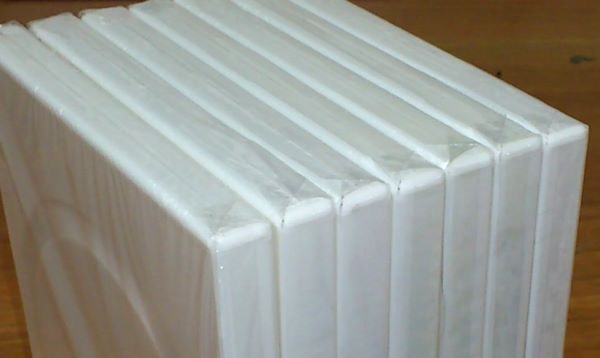

DVD CASE WRAPPING EXAMPLE:

info

telefono 041.484787

best

ROLLS ALWAYS AVAILABLE :

  • 14,5 CM width
  • 18,0 CM width
  • 21,5 CM width
  • 25,0 CM width
  • 30,0 CM width
  • 35,0 CM width
  • JEWELLcase CD Rolls
  • DVD BOX Rolls

bobine

OVERWRAPPING COST LESS THAN 2 EUROCENT !!
  • AVAILABLE MODELS :
  • SpeedBOX35 for bobine till 35 cm
  • SpeedBOX50 Wide for bobine till 35 cm
  • ADD-ON:
  • CUTTING MODULE continuos cellophan cutting option
  • WELDING POINT MODULE allow to point solder the square box sides
  • COMPLETE STEEL BOBINE HOLDER KIT good for quick bobine replacement
  • WIRES KIT N.3 replacing cutting wires
  • TECHNICAL DETAILS :
  • Packaging: almost every kind of box thickness min. 10mm
  • Production capacity: up to 150 pcs. /Hour
  • Film cut: low tension Thermal wire ni/cr
  • Packaging Welding: termcal stabilized panel
  • Temperature panel Operating default: 135° (30u)
  • Temperature Stability: ± 1°
  • Temperature: adjustable from ambient to 150° step 1°
  • Built in Internal Thermal protection
  • Cellophan tension - adjustable through manual clutch
  • Therma Blade engagement Protection
  • Cellophane: Bi-Oriented Polypropylene (BOPP)
  • Manageable thickness of cellophane: 20/25/30/35 micron
  • Maximum Coils width : SpeedBox: 35 cm

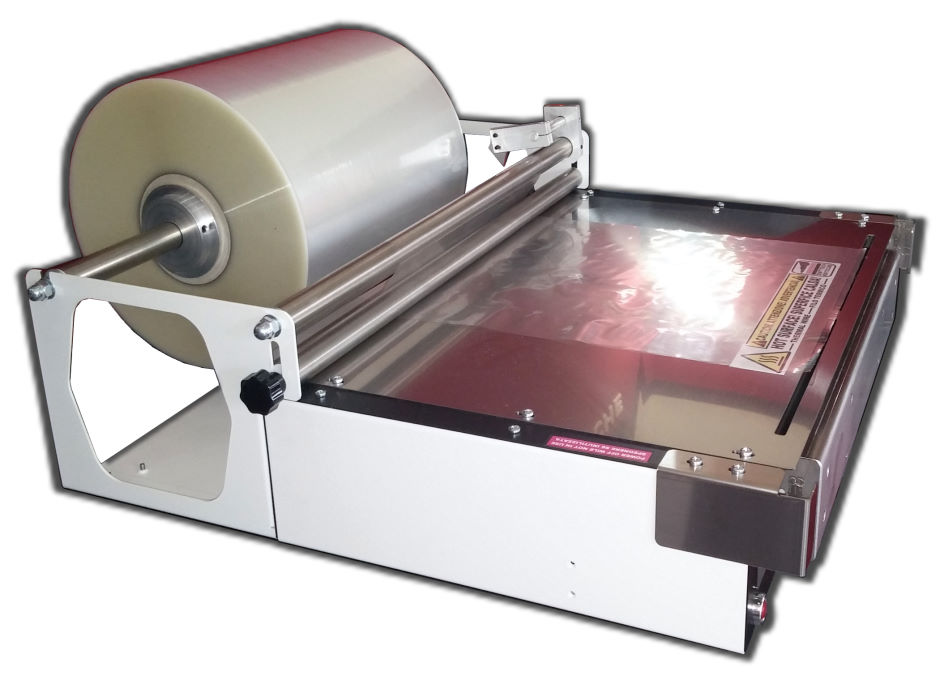

  • Maximum Coils width : SpeedBOXwide: 50 cm
  • Maximum Coils diameter: 28cm (11 ")
  • Production capacity / reel: varies based on
    size of the box, on average, 4/6000 packs
  • Size: 42x19x45 SpeedBox coil (esc)
  • Size: 56x19x45 SpeedBox wide coil (esc)
  • Power supply: 110VAC/60Hz - 220VAC/50Hz - 350W
  • 100% made in Italy - 100% EC parts only.
  • SpeedBox Net weight: 10kg (roll ex.)+5 for package
  • SpeedBOXwide Net weight: 15kg (roll ex.)+5 for package
  • English manual supplied
  • Technical support always available in o.h.
